After a year messing with other stuff, I finally got back to working on the FPGA implementation of the IBM 1410. With the CPU work essentially done, yet no peripherals, the issue to tackle was how to test the CPU – with no way to load diagnostics.
The solution I came up with was to take memory images I had generated (and could continue to generate) of diagnostics loaded into core (which are generally restartable at location 1) and load them into the FPGA.
Since I didn’t want to integrate this additional “feature” into the existing 1410 memory logic, I chose instead to implement dual port VHDL RAM memory that is underlying what the CPU things of as core, so I could load stuff into it. I then wrote a simple state machine using the existing multi-facet UART interface hardware (which also handles things like console I/O, lights and switches between the FPGA and the PC running the console program) so that it could load memory images from my existing 1410 Simulator. In so doing, I had to swap the top two bits – the simulator has the WM has the high order bit and the C bit as the next lower bit, whereas the FPGA has the C bit as the high order bit.
This turned to be a bit easier than I expected to pull of, and after a week or so of effort, it is now in place.
Loading up the main CPU diagnostic, CU01, it did not get all that far. The Subtract instruction has an issue where it isn’t placing the sign bit over the B field (result) units position – at least it is not doing so when the result sign is different from the original sign. Presumably an error in entering the information from an ALD or a signal misconnection. I suppose it could be the kind of thing that might have happened in the factory during the construction of a real IBM1410 where something was amiss.

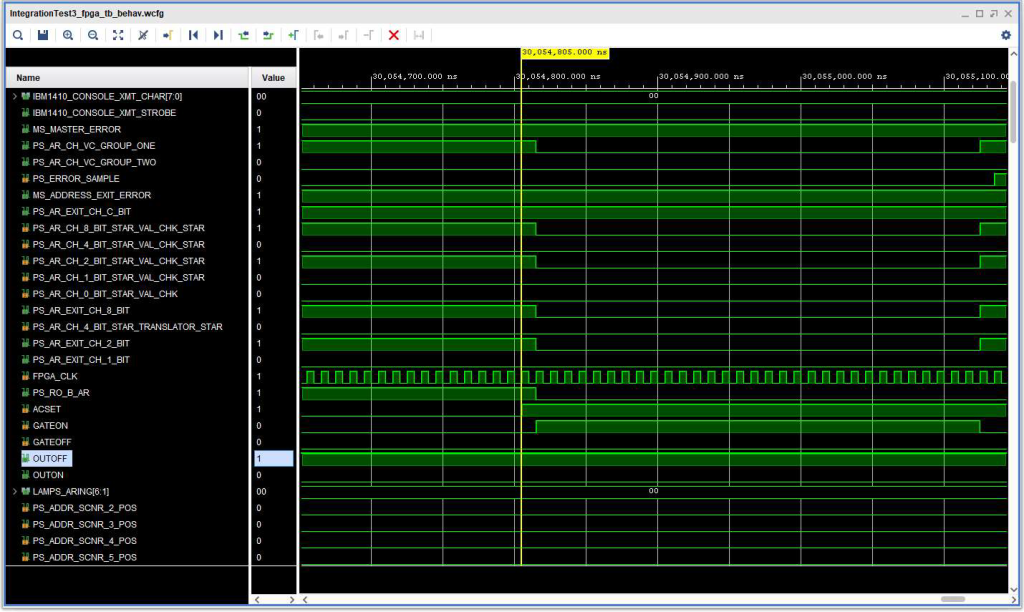

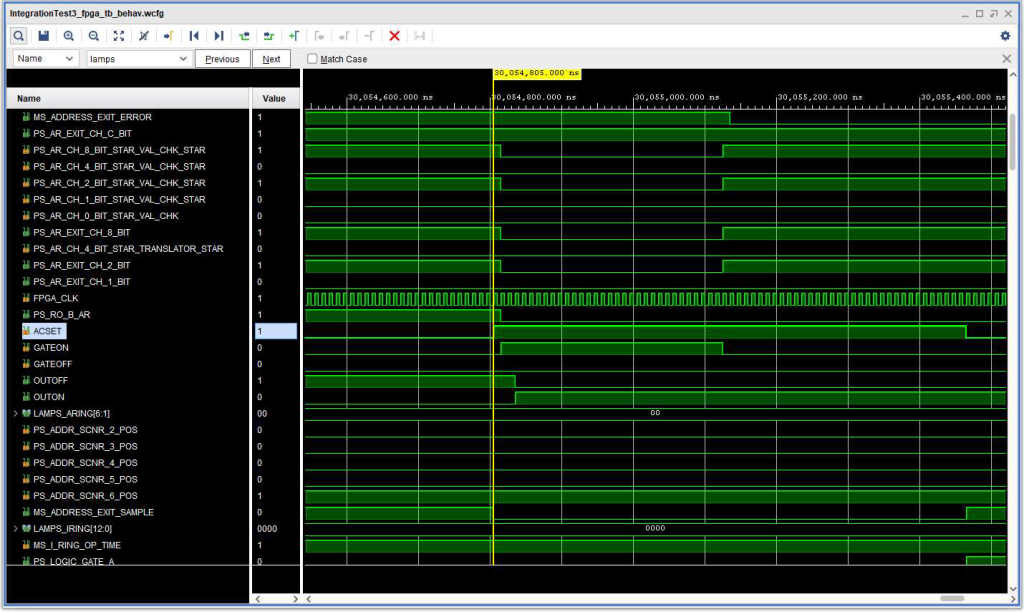

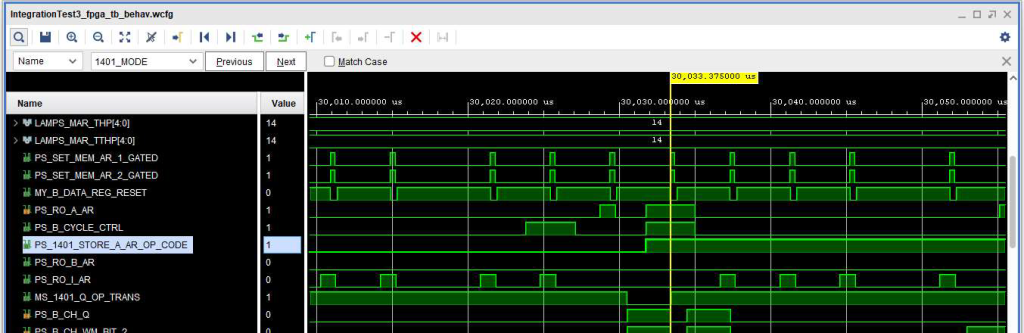

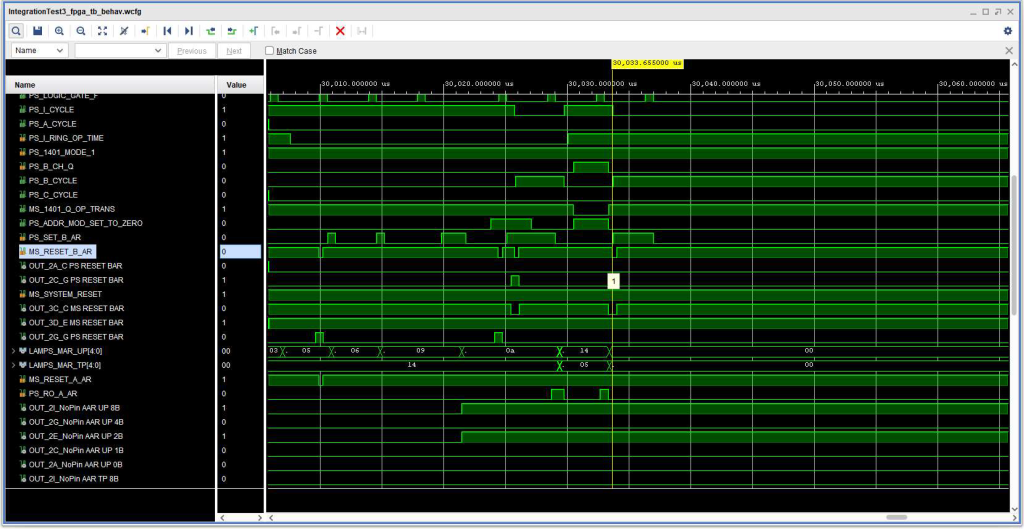

Fortunately I can easily reproduce this problem under the Vivado simulator, which provides what amounts to a mult-hundred probe logic analyzer, and am using that to track down the problem.
An denizen of the Classic Computer mailing list approached me recently about getting some paper tapes read in. These were BASIC programs from his High School days. At first I tried reading them in my PC05 paper tape read on my PDP-11/34, however that reader has a sprocket feed, and no good place to hold a rolled up tape. I tried 3D printing a spool reel holder and output guide, that that was not successful. So I decided I would try instead to use one of my two HP 2748 paper tape readers – an HP 2748B in particular.
Note that this reader has a capstan (small cylinder to the right) and a pinch roller (the larger black roller to the right) to firmly grip the tape and pull it through the read station. It works pretty well, but I do have to clean it frequently when reading oiled rolled tapes or they start to slip. Fortunately, both the capstan and the pinch roller are metal – no chance for rubber rot turning to “goo” here!
The Arduino “Sketch” described in this post, the PC side perl script, and some perl script tools for working with paper tapes for 8080 machines, PDP-11 and PDP-8 are available for download.
The jig I used to install new grain-of-wheat lamps into the read head is available on Thingiverse .
Like many/most HP devices, this device is absolutely gorgeous inside. Gold plated printed circuit boards (the entire board, not just the contact fingers), lots of space to work inside, easy disassembly and reassembly.
A Continental Connector for the Interface
The first challenge was the connector. It is a 50 pin connector originally made by Continental. First I bought a Winchester connector off of eBay, but its pins were much too narrow. Then I purchased an AMP connector of eBay, and its pins were just a little bit too narrow. For now, I added solder to the relevant pins to ensure they make contact. Some are still a bit too wide and need some filing down so the connector mates fully, but it works well enough, for now. I will not be leaving this connector attached permanently because of the solder. But I thought it was a better than the alternative of wiring up a second interface connector.
The default logic voltages for the interface are +/- 12V. However, HP also planned for a TTL logic level interface (0 – 5V) by adding a clamping circuit on each interface connection. This clamping is activated by connecting interface pins C and H. Unfortunately, my AMP connector had a coax connector on pin C, so for now I made this connection internal to the reader. When I get some time, I’ll se if I can swap pins so I can make this connection in the way the designers intended.
My plan was to use an Arduino to drive the paper tape reader, and connect to that via TCP/IP, similar to how I did my paper tape simulator.
It’s ALWAYS a Light Bulb
The first thing I did was re-form the capacitors. This turned out to not be necessary. For one thing, most of the power supply capacitors are rated at 5 TIMES to 10 TIMES the expected voltage across them. There was almost no current flow after a minute or two of “reforming”.
The next thing I thought of (thankfully) was to check to see if the illumination in the read head was OK. Well, of course it wasn’t (though the lamps in my other HP paper tape reader, an HP 2748A, turned out to be OK).
Unlike the DEC paper tape readers, these HP readers use a grain-of-wheat lamp for each channel: 10 lamps in all, 8 for the data channels, one for the feed hole, and one additional lamp used for temperature compensation. Clearly at least one was bad, but it turned out to be much more confusing than that.
I had some lamps on hand that are ostensibly for an RK05 positions sensor, but when I tried to replace the lamp I thought was bad (and at that point, I thought it was just one), another one seemed to fail. I took out the lamp I thought was bad, and tested it – and it seemed OK. Put it back in, and it seemed bad. Eventually I figured out that what was probably going on was that the wires on the lamps were so corroded that solder wasn’t taking properly to the leads. Eventually I decided to order some likely replacements off of eBay and replace all of them.
The process of lamp replacement is sufficiently tricky and time consuming that HP service people generally were not expected to do it in the field. The bulbs aren’t listed as replaceable components. Instead, service people / customers were expected to acquire a replacement for the entire read head.
Metal alignment pins at least make the removal and re-installation process relatively straight forward – takes about a minute.
To do the replacement, I removed the little PCB (left side of the photo), unsoldered everything, including the wiring to the rest of the read head, and install new lamps. I had already learned from experience that getting a single lamp into position could be tricky, so I didn’t relish trying to do what with eight of the little wee beasties. In order to assist the installation, I made a 3D printed jig that fit the boards and had a place for each bulb at an appropriate distance from the PCB based on the lead lengths of the original lamps that I had removed.
It still wasn’t easy – at 70 years of age I am pretty shaky at times (and have been more shaky than average my entire life), but it worked well enough. However, since these bulbs are slightly different than the originals, I ended up adding a fixed 1/2 Watt resistor to add some additional resistance. That resistor is inside the black heat shrink tubing that goes from the adjustable resistor in the top view over to the PCB.
Then I used silicone sealant to hold the board in place, much as had been used originally – messy, but effective.
Next, I adapted the “solder enhanced” AMP connector to the tape readers interface connector. That took some trial and error in terms of how much solder to add so that I had good reliable contact. It still isn’t perfect: some are a bit too large right now.
Then I was ready to adjust the read head. Fortunately, there are good instructions in the manual (see the link at the top of this post) for how to do that. I ended up going thru that process several times, but in the end it ended up about where it was after the first time.
During this process I was also able to verify the interface signals were behaving as expected. It took a minute or ten to figure out that the read hole signal would not be present unless the READ button on the reader was engaged. Also, at first, I misunderstood the lamp/bit order – on this reader the feed holes go nearest to the front panel when inserting from left to right – the opposite of a DEC PC-05 reader.
The Arduino Interface
For this application, an Arduino Uno had sufficient interface pins, and unlike the Raspberry Pi, is supports 5V interfacing. The code was relatively straight forward, and uses the same kind of program I used for the paper tape emulator I called out earlier – the PC just makes a TCP connection and sucks up data.
The interface pins for the HP Connector, the Arduino and the Arduino digital signals are all documented at the top of the code, and symbolic constants and macros are in place for handling the Arduino port setup and usage.
There were some things I learned/ tweaked along the way:
At first I tried to stop the reader every time I sent a buffer of data to the PC. However, the clutch and brake on the reader don’t seem to be working quite well enough for that to succeed, so in the end I just streamed the data an “hoped” the Arduino and the TCP connection would keep up – and it seems that they do.
Originally I though I might have some kind of header on each buffer of data I sent, but it occurred to me that TCP is essentially doing that already. The code for that header is in SendBuffer(), but is commented out.
I was having problems with some extra characters, so I added a little time wasting loop to more or less ignore rapid transitions on the h0le signal. That code could probably be improved upon.
It is Working – Trust but VERIFY
After a couple of passes of tweaking the lamp positions and going through the adjustments, the reader reads a DEC test tape pretty reliably – maybe 1 error every 50,000 characters. It also handles both fan folded and wound “round” tape spools well. However, I always try and verify that tapes read correctly, so I wrote some perl scripts to do things like:
Verify 8080 binary tapes (the format is documented in the script)
Verify 8 Bit Intel HEX tapes
Verify Even parity text tapes
Verify PDP-8 binary format tapes
You can download a Zip archive with these tools, the Arduino Sketch and the PC side Perl script here.
One More Problem – There’s Always at Least One
As I started reading in tapes, starting with the DEC test tapes (MAINDEC-00-D2G2-PT and MAINDEC-00-D2G4-PT) things were fine. As I proceeded to read in some 8080 binary tapes, I started having some issues with the high order bit. That was easy to fix – the lamp was slightly miss-aligned.
I also found finding the balance between not having data errors (dropped bits) and having duplicated characters a little tricky – it took me a few passes doing the adjustment procedure described in the HP manual to get it working well.
However, I then discovered one more problem. Sometimes it would drop some of the null characters appearing in a blank area of tape after the initial leader. The HP 2748B has a special circuit that causes it to intentionally drop leader nulls – once you hit the READ button, it drops nulls until the first character. After trying this and that (including running through the adjustment procedure yet again), it occurred to me that maybe that circuit was firing, causing the reader to drop nulls.
I connected several signal lines to a connector that I thought might be useful in order to scope them (and not have to keep moving the scope probe around the board, as I have no extenders for these connectors), and quickly confirmed my suspicion. I tried a lot of things – including swapping some of the four identical transistors (two for a flip flop, and two more acting as signal inverters) so that the flip flop would have matched transistors, to no avail. I also tried replacing the capacitor that connects to +12V that resets the flip flop on power up (in case the READ button is already pressed). Nothing seemed to help.
I noticed on the oscilloscope that the length of time before the circuit fired when it shouldn’t was kind of random. Could this be noise? Connecting a .1uf bypass capacitor on the +12V line feeding the reset circuit was the first thought, but that was going to be harder to do on the board than I preferred. In the end, I hooked up the capacitor from the base of the reset signal inverter Q13, and that cured the problem.
Now the reader is generally reliable so long as I keep the read head, capstan and pinch roller clean.
The IBM 1410 FPGA project has reached a milestone. Console input of characters, word mark, space bar, index (force premature end of line) and the special inquiry keys: request, cancel and release is now complete.
With that it is possible to display memory, update memory, start execution at a specific address, start the machine, stop and machine, etc.
I have tried a few instructions in as simple way: Set Word Mark, Halt, Add, Subtract, Jump on Inquiry Request and Jump unconditionally, and they work OK for at least a very simple example.
With this, the implementation is very close to being in same state as a real IBM 1410 donated by Oscar Mayer that we played with in the basement of the University of Wisconsin Computer Science lab: CPU, console but no peripherals or I/O synchronizers.
There are some issues, though, both with the console implementation and with the FPGA implementation. For the FPGA
The Console Check Test 3 fails to set the ADDRESS CHANNEL error. This is a “fight” between the DC Set which the switch activates, and another signal holding the trigger reset. (I think an earlier blog post discusses this in more detail).
Attempts to display memory at 09998 show only two characters (this may or may not be correct), and attempts to display memory above 10000 fail miserably with a B Character Select error. This could be an issue of a gate being present that should not be, because I generally entered all gates using the IBM 1410 SMS application, even ones that I knew I would not want eventually, and/or a missing tie-down or tie-up of a signal. This is a critical problem to ferret out and fix. [Resolved 6/11/2023 – simply a matter of marking most of the gates for features “S10” (or $10 depending on where you look) and “S20” for “no generation”.]
As mentioned in an earlier post, when starting a display memory sequence, during the first step – address entry – a “D” should be displayed. Instead an underlined (invalid parity) “F” is displayed because of a bit 2 “pick”. This looks to be an error in the actual ALD, will be easy to fix, but doesn’t really affect much of anything.
An attempt to do output I/O to the console, using instruction M%T0aaaaaW does not operate properly — it repeats the first character in the I/O buffer at address “aaaaa” without end. This is also a critical problem, as diagnostics need to do this. [This has also been fixed as of 6/20/2022. It might have involved the change that *removed* a “D” flip flop after gate 3F.] [Update: This problem has also since been resolved.]
With the addition of the console, there are now three github projects involved with this effort:
Since the last post, I have begun working on inputs – switches, in particular. The input subsystem is much simpler than output, at least for things like switches and console input- there is no need for any kind of common FIFO or arbitration. Instead the module IBM1410_UART_INPUT_SUBSYSTEM receives data from the FPGA development board UART, and then places that character onto one of N (currently 0..7) input FIFOs (one each for receiving data for switches, console input, card reader, and so on), and N write data flags.
Then, each input module (for example, module IBM1410_CONSOLE_SWITCHES_RECEIVER) reads data off of its FIFO, and does the appropriate thing with that data. Specifically for switches, this means receiving the entire vector of switches into a temporary vector, and once fully received, replacing the one that the 1410 itself is using.
Testing the various switches has led to some interesting discoveries:
Adding switches made a number of multi-page combinatorial loops pop up, that were previously hidden as a result of optimization by the Xlinx Vivado toolset. The 1401 compatibility switch was the second (and I hope last) of the loops involving large numbers (more than 300) gates. I could have change the design rule check to ignore this issue, but I decided instead to modify the SMS generation application to look in the logic block Notes field for “DFLIPFLOP” causing it to add a D Flip Flop after the identified logic block.
I like to be able to run the FPGA CPU on its own. This means that it’s initial switch vector (the one that gets copied into when an entire switch vector is received from the host support program) needs to be reasonably initialized. To do this there are a few SWITCH_VECTOR(….._INDEX) => ‘1’ entries along with an OTHERS => ‘0’ at the end to set things up right. This fact is what actually led to the replace with a buffered copy concept described above. (The first time ANY switch is activated on the PC host program, the entire switch vector gets replaced by the transmitted one; indexing in hardware is hard. 😉
While testing the “DISPLAY” function of the console’s MODE switch, when one presses START, a “D” should appear. However, currently, instead an “F” with invalid parity currently appears. This is occurring because the printing of “B” is also enabled, causing a “pick” of the “2” bit. It looks like my ALD is out of date – the “B” should really be being suppressed under these conditions – in other words, a hardware “bug”. Sure hope there are not too many of those! A similar thing happens with the MODE switch set to C.E. A “#” should be printed, but instead I get a “.” – same bit pick, for the same reason.
Pressing CHECK TEST SWITCH #3 (and holding – which the C# user interface host program makes easy by holding on a click, and then releasing on the next click), and then pressing START should light up all the PROCESS CHECK lamps. This works fine for check test #1 and #2, but for #3 it does not light up the ADDRESS CHANNEL error as expected. This scenario uses the DC SET input to set the flip flop, but it appears that there is a signal using collector pull down causing the flip flop to reset (DCRFORCE in the SMS gate’s module) at the same time – and that reset it taking priority in the VHDL. There are not too many of that particular gate type in the system, so I may try reversing the priority of those things, so that a DC SET takes priority and seeing if that breaks anything else.
The SCAN GATE switch on page 22.214.171.124 (part of the ADDRESS STOP circuitry) has a note that says it is a “CIRCUIT OPENINING” switch – in other words, all outputs are -36V except the selected position. In most cases in the IBM 1410, a connected switch means ‘0’, that is, -36V, so this behavior is (to be verified) a natural outcome of how I implemented switches – I “NOT” switches in the VHDL all – because an “on” switch electrically connects to -36V. For this switch, a given unselected position has to be a ‘1’, which is then “NOT-ed” in the VHDL to a ‘0’ – which then forces the output of the gate it is connected to to a ‘1’ – taking it out of the filtering criteria for address stop – it’s scan position can be either on or off. This, along with a failure to initialize the SCAN GATE switch and the address top address switches had me tied up in “NOTs” for a little while (pun intended.)
On this same page there are a couple of optional SYNC COND inputs – at least one of which need to be tied to logic ‘0’ in order for address stop to work. They were intended to give CE’s a way to do an address stop on arbitrary conditions inside the machine.
Having the 1410 sending output to the console a few months back was great, but lots more is left to do. Over the past few months I have been working on a couple of needed capabilities:
The console is only one of many devices that will need to send output out from the FPGA development board to a support application. Others will include lamp display information, tapes, disks, printing and punching. In order to make that happen, I needed to do several things:
There needs to be a FIFO, since at times multiple devices may need to send output to the console support program, and they are not “aware” of each other – they could conceivably overlap in activity. Also, some devices (like lamp output) would not necessarily be constrained to IBM 1410 cycles – they could generate output more quickly. That means that some kind of FIFO is required.
Since devices could possibly send at the same time. There needs to be some kind of arbitration to decide which device has priority and gets to go first.
The arbitration and transfer of a character to send to the support host would not be instantaneous, which means that each device that can generate output needs to have at least a single character buffer, and some kind of signal to tell it whether that buffer is full or empty.
A multiplexor to select which source is currently providing the next character to be placed into the FIFO to send out.
These capabilities were created in VHDL in the module IBM1410_UART_OUTPUT_SUBSYSTEM, which is comprised of up to eight (currently) “requesters” (that one character buffer and flag signal, so one for the console, for now – but eventually more of them), the “arbiter” which decides who goes first, the “mux” (the multiplexor), “mux to fifo” which manages the transfer of characters from the multiplexor to the fifo, and “fifo to uart” which manages the transfer of characters to the UART when the UART is available to send more characters.
I am also in the process of modifying the SMS HDL Generation Application to generate vectors for lamp bits for transmission to the support host program, and switch bits to accept switch information from the host program. The lamp vector will be sent out from the FPGA periodically (maybe as often as 20 times/s) via a state machine to display lights on the emulated console in the support host program, and the switch vector provides a convenient means to number each switch for the purposes of host/FPGA communication.
Eventually there will be a serial input subsystem as well, to support the aforementioned switches, as well as input devices, like the card reader, tape, disk and so on.
I purchased this microscope with two applications in mind. First, primarily, to use when soldering SMT devices onto circuit boards. Secondarily, I wanted to see if I could read and capture images of 1960’s era manuals that are on microfiche.
Firstly, I want to mention that the level of support I received from the email address provided with the unit exceeded my expectations.
Questions on the Amazon listing were answered within 24 hours, as were email questions after I purchased the unit. Most of them related to the limitations on still frame capture I discuss, below.
The 7 inch (diagonal) screen is nice, and the post arrangement allows a wide range of zoom factors for soldering, down to individual pins. The camera is easy to use, and can stream video directly to an HDMI monitor via its “mini” HDMI connector, and can be connected to a PC as well. Images were clear and sharp on the monitor and in saved images of circuit boards.
Battery life seems pretty good – more than a couple of hours. I did not quantitatively measure it.
Overall, the device serves the primary purpose quite well.
Note that this unit was purchased by me: it was not supplied by the vendor for review.
Camera Lens and Sensor
This device features a VMS700 camera, with a 4 mega pixel (MP) native resolution, which the firmware can extend to 16 MP using interpolation, which does help clarify the images a little bit. According to the web page for the product, the post on the stand can be tilted from upright to an angle, though I have not actually tried that. Color depth is 24 bits per pixel.
The lens provides a wide range of zoom capabilities. Using the shorter post on my unit, without the included extender, the zoom is probably something like 1X – 300X; using the new taller post the Tomlov web site indicates it has a zoom range from 1X to 1200X. The middle of the lens is a fairly large focus ring – more than an inch – making it very easy to use. A glass filter – probably a UV filter – is also included with the setup.
Base and Lighting
My unit came with a screw on extender for the post to raise the camera higher from the base (not shown in my photo), which is a little inconvenient to use, but recently the DM201 was updated with a taller post that does not require unscrewing and reattaching the mount to add the extender – a nice improvement. Tomlov offered to send me this updated post, but I declined as I did not need it for my purposes.
There are three different light sources on the unit. The first is a ring light built into the camera lens assembly. The brightness is adjustable from fully off to fully on in steps using a little (lighted) bar just below the buttons on the LCD screen. It can be adjusted either by sliding your finger on the bar below the screen, or tap the bar on the left or right side – the latter worked better for me. There are also two lights built into the base, and a similar control for them near the back of the base. The base gets its power for these lights via a provided USB micro cord that runs from the USB “A” type connector on the back of the screen assembly down to the USB “C” connector on the base.
IMPORTANT TIP: If you want to take an image of a transparency (say, a slide or microfiche) then you have to position a light source underneath the transparency. I purchased an inexpensive ($15-$20 US) thin LED light table / tracing table for that purpose, leaving the microscope’s own light sources turned off.
Connections and Remote
Besides the USB “A” connector, the back of the screen assembly has a “mini” HDMI connector, a micro SD card slot – the SD card was included and already in place in the unit I purchased via Amazon, and a USB “C” connector for charging the screen unit and attaching to a PC.
Besides the LED slide control on the front, the front of the screen assembly also has a power button, four menu control buttons, an LED to indicate power / charging status, and a sensor for controlling the unit via an infrared remote, which I did not test out. But the remote would be important for capturing high quality still images to the SD card so that the lens does not move as when pressing the “OK” button, which is the other way to initiate a still image capture.
Connection to a PC allows access to the camera via the UVC (USB Video Class) interface on Windows. By pressing the OK button, one can switch from UVC to MSDC mode, which supports access to the CF card on the device as a Windows “disk”.
The menu supports a number of settings, including:
Playback of existing captured still images or videos (I did not test the latter)
Management of existing capture files (this can also be done from the PC over MSDC)
Control of exposure (automatic or manual/lock),
White balance (automatic, manual or to calibrate), or set specific R/B/G values
Image type: Color “B/W” (which is really greyscale) and Color Negative
A Wide Dynamic Range setting, which the manual says works better if you have light and dark areas together
Contrast (only if Wide Dynamic Range is turned OFF)
Saturation and Sharpness
Flipping the image horizontally or vertically (I wish they had 90 degree rotate as well)
Frequency of 60Hz of 50Hz (presumably the vertical refresh frequency for the HDMI and USB video outputs?)
Setting the mode, Photo, Video, or “Freeze” which lets you capture images and displaying them next to each other
Video output, for 1080P30 or 720P60
For freeze, whether you want to save one, 1/2 or 1/4 of each image you take
Auto off: none, 1M, 3M or 5M
Language: Choose from English, Chinese, Japanese, Russion, German, French, Spanish or Portugese
Reset to default settings
Format an SD Card
Current version (mine was version 1.2.19)
There are also a set of controls for controlling reference lines, which I did not try out
While using this device to do some SMT soldering and capturing of images off Microfiche, I did find some limitations:
The still frame camera images at native 4MP or interpolated 16MP resolution are only accessible via the SD Card or MSDC. You can capture still images using the Windows built-in Microsoft Camera app, but those seem to actually be single frame captures at HD resolution (1920 x 1080) off of the video stream. I found I could not successfully capture still images using a demo of the commercial AMCap application — I got a black image with the expected watermark. Fortunately, access via MSDC works well, and you can even delete images or videos on the SD card from the PC that way.
You cannot access the menu to changes settings while connected to a PC in either UVC or MSDC mode.
The screw down retaining ring that holds the post to the base doesn’t work as easily as one might wish – you have to work a little to turn it down so that the post is firmly mounted.
Unfortunately, there is no way to disable the JPEG compression when saving still images to the SD card, which might be useful for post-processing those images.
When I set the zoom to capture an entire 8.5″ x 11″ “page” from the microfiche I had, rotated on its side for the best fit, it comes out at an effective pixel density of about 178 dots per inch at the 4MP 2688×1512 native resolution (1512 / 8.5″). Unfortunately, this provided a bit insufficient for my needs. I would need at least 8MP native resolution to get to the requisite 300 dots per inch.
The base lights can be a bit tricky to get pointed exactly where you want them. Sometimes one has to pinch them quite a bit to get them to stay where you want.
The first image is a 4 mega pixel native sensor resolution image captured and transferred from the microscope’s SD card. The second is a 16 mega pixel image with interpolation by the camera’s firmware. All but the last set are effectively what what might see from a 175 dpi scan of the original document.
Note that I didn’t have any glass on top of the microfiche while I made these, so the areas at the top and bottom edges of the page scanned, and beyond, particularly, are somewhat out of focus.
Next come the 4 and 16 mega pixel images, as color negatives.
Finally, some “Black and White” (24 bit gray scale) images.
Finally, the following images are with the lens fully zoomed in (moved on the post down right next to the microfiche. These would effectively be something around 400 dpi with respect to the original sized document – but only a partial document is in the field of view.
Over the past couple of weeks I have worked to reconstitute a Sun Sparcstation 1 (aka Sun 4/60) that I procured from UW Surplus way back in 1999, and which had been sitting on a shelf since then. The label on the front says it was priced at $0.00, however I think that was just the label the originating department slapped on it – I actually paid $18.99, tax included.
The disk drives had both died, but a SCSI2SD board (both V 5.2 and V6 / 2021) worked as substitutes, with little difference in performance. I set up both SunOS 4.1.4 (aka Solaris 1.4) and Solaris 2.7 (aka Solaris 7) – but the performance of the later Solaris was nearly intolerable. The video card that came with it was has a very odd Sun specific monochrome output, but I was able to acquire a color card at low cost off of eBay this year, and swap them out.
The machine has two Ethernet ports – one on the mainboard (le0) and the other on an SBus expansion board (le1) – the latter has a coax “thin net” connector. I don’t have that, but fortunately I have a couple of AUI cable to 10BaseT adapters so I was able to hook it up to my network.
These systems used a Mouse Systems optical mouse – and I got a mouse with the system, but not the mouse pad – and the pads are now essentially made of “unobtanium”. I found a site on the web where someone had printed their own – dark red horizontal stripes and vertical blue ones. It does not work very well, but at least it does work.
Somewhere along the line I also got a Sun SCSI cartridge tape drive shown in this photo. I have used that with PCs to recover cartridge data, but in this photo it is just for show.
The last 12 months I have been pretty busy working on my 1410 in FPGA project, and there is now more to share, though I have not done much actual work since February – been too busy playing with other “toys”. 8D
First, I finished working through all of the IBM 1410 and IBM 1415 Automated Logic Diagrams – generating VHDL and testing the results with test benches. [Note that this includes the built-in 1401 compatibility mode, activated at the flip of a switch.] That took most of 2020.
So, the CPU generation in VHDL is now more or less complete, and I added a hand coded memory module for memory, as core is kind of hard to find on an FPGA development board. 😉 I am currently using a Digilent Nexys 4, but I think it might have even fit on a Nexys 2 – there is plenty of room to spare, and there isn’t anything in the VHDL aside from, maybe, the memory implementation (though even that is pretty generic VHDL).
With this the CPU runs, at the very least, Unconditional branch (Jump), Halt, NOP and Set Word Mark instructions seemingly correctly – I haven’t tried any others. Somewhat surprisingly, aside from issues with the hand coded VHDL in triggers and the need to communicate pins tied to logic one or zero, the auto-generated VHDL works untouched.
I have updated the github repository for the C# database application that generates the VHDL from time to time (and which includes the complete database) at http://github.com/cube1us/IBM1410SMS
There is now a *new* repository, http://github.com/cube1us/IBM1410FPGA which holds the generated VHDL, some hand coded VHDL modules for certain SMS cards (typically for triggers, for example), the console and test benches I used along the way, and VHDL “Integration Tests” which are designed to be loaded onto the board – the current one being IntegrationTest3.
There will be, eventually, a third repository which will contain the C# code that “hosts” the IBM 1410 console and peripherals, communicating with the FPGA over a high speed serial over USB connection. I figured out that this should allow me to emulate peripherals without having to resort to sending data over Ethernet, SPI, I2C or the like. I have just started that, so it really isn’t at a point that there is much to share.
Once I have a console working (which will require a re-do of the console VHDL implementation, which right now communicates in ASCII, but should probably be using BCD), I should be able to pre-load into memory some of the CPU diagnostics, by loading a diagnostic routine into either my 1410 simulator (http://github.com/cube1us/1410), or Richard Cornwell’s emulator in SimH and then taking a snapshot of “core” to pre-load into the FPGA. At that point I expect I will be able to test the CPU pretty thoroughly. I hope and expect that will happen this year sometime.
Unfortunately, I do not have the ALDs (Automated Logic Diagrams) for the IBM 1414 I/O Synchronizers, but I do have the Instruction Logic Diagrams which should allow me to code VHDL to emulate card, tape and maybe eventually even disk functions, so those might take a while.
In early 2021, I converted the hard drives in my Pentium II computer which hosts my P/390E IBM mainframe processor card, which I call “Floppy Copy“. This machine boasts three different operating systems. Two are in support of its primary mission for copying floppies: Linux to host my Catweasel board (which may not see much future use, now that I have a Greaseweazle board), and Windows 98 for copying floppies using tools like IMD. It also has OS/2, in support of the P/390 board.
First some background: OS/2 had always acted a little wonky: I did the partitioning under Linux because OS/2 didn’t like to partition the 200GB drive. And then, having partitions of 2GB, 57GB, 57GB and 57GB, running OS/2 chkdsk on the last two 57GB partitions would sometimes clobber the first 57GB partition, for reasons I never understood – until I undertook this migration. (I still don’t quite understand why it never managed to clobber the 2GB FAT partition!)
So, off to Amazon I went, purchasing IDE to SATA adapters. The two from Startech and Kingwin worked fine. One from Sinloon worked, and the other did not work at all. In addition, I found, strangely, that the adapters would work with a 240GB drive, but not a 120GB drive. WTH?
So, then I went looking to see if the BIOS might be involved, and I found a BIOS update from Aug-17-1999 to Sep-09-2000. That cured the 120 GB problem. But then, in testing, I ran into the same kinds of issues on the 240GB drive I had seen on hard drives, with corruption after running OS/2 chkdsk.
Well, it turns out that this particular motherboard, a Chaintech 6BTM, has Ultra DMA-33 IDE ports –and only supports drives up to 137GB. Ahhh, so that was the problem.
I wanted to give OS/2 (and the P/390E) as much space as possible, so it got one 120GB drive. I tried and tried to move the drive partitions for Windows 98 and Linux over to a shared 120GB drive, but without success. The minute I created a second primary partition for Linux, Windows 98 would no longer boot. So, I simply imaged Windows 98 as is to a 120GB SSD (using only a fraction if it), OS/2 to a 120GB SSD and Linux to a 240GB SSD – because I already had it, having purchased it from before I learned about the 137GB limit.
Only one of the three adapters I had supported IDE master/slave. The other two had to be alone on their cable. I am using one of those two (Kingwin) permanently.
Having gotten things tested, I went about testing the IDE to SATA adapters one at a time in order to write reviews. While testing the Kingwin adapter, though, I decided to plug it in with power on. Unfortunately I had the power connector upside down, and as soon as it touched, the computer dropped power. Worse, I could not then power it on at all — completely dead. Ohhhh nooooooooo!!!
After unplugging the power cord for a couple of minutes, I could at least try and turn it on, but it would not start up – no beep, no nothing. Fearing the worst, I tested the power supply voltages – all fine. Ohhhhhh noooooooo!!!
After 10 minutes of panic, I started testing cards from that machine in a reasonably close relative, my AMD Athlon machine with an ASUS A7M266 mother board. Video card: good. IBM P390/E even passed its diagnostics. (Whew). So then I pulled all the cards out of the Pentium II as well as the IDE to SATA adapter I had been messing with at the time of the infraction, and the machine came to life!
I put all the cards in one by one, and stopped at the POST test. All good. Then, just for giggles, I hooked up that last IDE to SATA adapter – dead in the water, apparently fried. Embarrassing: I fried an adapter. The good news: it costs less than $10. Glad I purchased four of them. (I kept the Startech out in reserve because it is the only one of the four which worked and can be set for Master or Slave.)
Having discovered that the P390/E was happy in the AMD with the A7M266 motherboard, and that the motherboard has OS/2 support as well, so in May 2021 I migrated the P/390E to the AMD machine, and upgraded to OS/2 Warp 4.52, so now I have support for the full 240GB SSD.
Getting console output was going to require writing some VHDL of my own – I don’t have an actual IBM I/O Selectric available! I started out by reading through the material in the IBM 1415 Console CE Instruction manual (S223-2648) to design some finite state machines (FSM) to stand in for the console cams and feedback contacts.
The I/O Selectric uses cam contacts to control the timing of things like when the type ball tilt and rotate has completed, when shifts have completed, when spaces and backspaces have completed and when a carriage return has completed. It uses additional feedback contacts to indicate the parity of the received character, whether the keyboard is locked and the current shift state (upper or lower case).
To save time, particularly during simulation, I sped those timings up by a factor of 100. Mostly this just involved the console implementation module itself, via a VHDL generic parameter, but I also had to adjust the single shot on ALD 45.50.01.1 as well.
The Selectric also uses a set of solenoids to initiate actions such as printing a character, locking/unlocking the keyboard, spacing and backspacing, carriage return and shifting from/to upper and lower case.
After writing some simple state machines for the cam timing, I enabled the normal stop print-out in the CPU via a test bench signal, and then used simple VHDL with “wait” statements to check for the outputs and provide the input signals required by the CPU in order to test my understanding under simulation.
The first thing I came across was a latch on page 126.96.36.199 that did not have a reset. In real world hardware this can work because (unless it enters a meta-stable state on power up) it will be in one state or the other. However, under simulation that does not work – it ends up as an undefined signal – so I added a Program Reset signal to the latch at location 4A on that page to compensate.
The next thing I saw in the traces – which I hadn’t expected, but probably should have – was activation of the carriage return solenoid so I had to add the FSM for that. (Note: The I/O Selectric implements a carriage return by returning the type ball to the home position and initiating a paper (line) feed operation).
This was then followed by an “S” character – and the fun began. The interface feedback signals from the Selectric are full of names that end NC or NO (normally closed, normally open). Now one might expect that these refer to the state of those signals at idle, but the cam contacts aside, that quickly got pretty confusing – more so because most of these signals (except those that drive the solenoids) are active low. In addition, the keyboard lock signal is -W on the CPU diagrams, but +W on the 1415 Console Printer contact diagram page 40.30.01.0, and a couple of the feedback signals from the Selectric to the CPU are marked as -B level on the ALD page — but are actually -V level, as can be determined from page 40.30.01.1 as well.
Eventually I came to the realization that the best way of handling the NC vs. NO +/- confusion was to more or less ignore it, and instead use the signal name and level to determine what state a given signal ought to be in at a given time. That helped a lot. Once I got ordinary characters working right, I proceeded to code the state machines for space/backspace, and shifts.
Shifts were a little problematic at first, because the CPU drops the solenoid drive the instant it sees the feedback signal from the Selectric – which didn’t give me a clock cycle to save the new shift state.
Once I got that working under simulation, I turned my attention to getting that I/O from the Selectric to a PC for display. A few months back I had looked into using a MicroBlaze soft CPU to do that, but looking at how my Digilent Nexys 4 USB to PC connection works, I discovered I can run successfully at speeds of at least 115,200 bits/second, which should be plenty enough to run a simple flag bit/type protocol for not only console output, but also switch inputs, printer output, card input, tape I/O and disk I/O – perhaps adding a silo or two for lower priority devices. This is a huge simplification over what I had been thinking would be necessary.
But at this point there was also a little bit of extra work required. initially I had written the VHDL to use character output for the UART, but I subsequently discovered that VHDL doesn’t have a consistently synthesizable way to convert from character to std_logic_vector, so now that type-ball characters are specified as std_logic_vector bit strings, instead of ASCII characters – which is probably better in the long run, anyway. Mostly I am using the same encoding I used from the IBM 1410 simulator software, which in turn was derived from Joseph Newcomers IBM 1401 emulation software.
Once I had tested the UART VHDL, found at Nandland, I put together a test to combine that with the CPU and generate a bitstream for the FPGA. I had two small problems in the process – trivial ones, really. The first was that I keep forgetting to wire signal “+P SPECIAL +12V POWER FOR OSC” (which then feeds “+P SPECIAL +12V FOR REL DRIVERS”) to logic ONE. The second issue was that while most of the buttons on the Digilent Nexys4 are active high, the Soft CPU reset button – which I feed to the 1410 CPU Computer Reset signal is active LOW – wasted an entire day on that one. 8(.
One I did that, I obtained the following result: A printout of:
S 00009 00007 00007 .c … _ _
This is exactly the expected result (one which I had already observed in simulation). The “c” is a 1410 blank (different from the console space operation), and will print as a “b” using a PC-side application. Also, the three periods after that, which are the contents of the A Data Register, B Channel and Assembly Channel, have wordmarks – which you cannot see in the PuTTY output because they get backspaced over. Finally, the last two characters, the channel unit select and unit number registers for Channel 1 are wiped out by the backspace/underscore combination that occurs because they seem to be uninitialized, and therefore have bad parity.
Next on the list will be cleaning up the latches in the VHDL code which are currently tracking upper/lower case, tilt, rotate, space/backspace, and the character to be sent to the UART, and maybe a couple of more, as well as working on the PC side console application – starting with designing the protocol I will use for PC / IBM 1410 communication.
