Other Peripherals

This page is a catch-all for other miscellaneous peripherals.

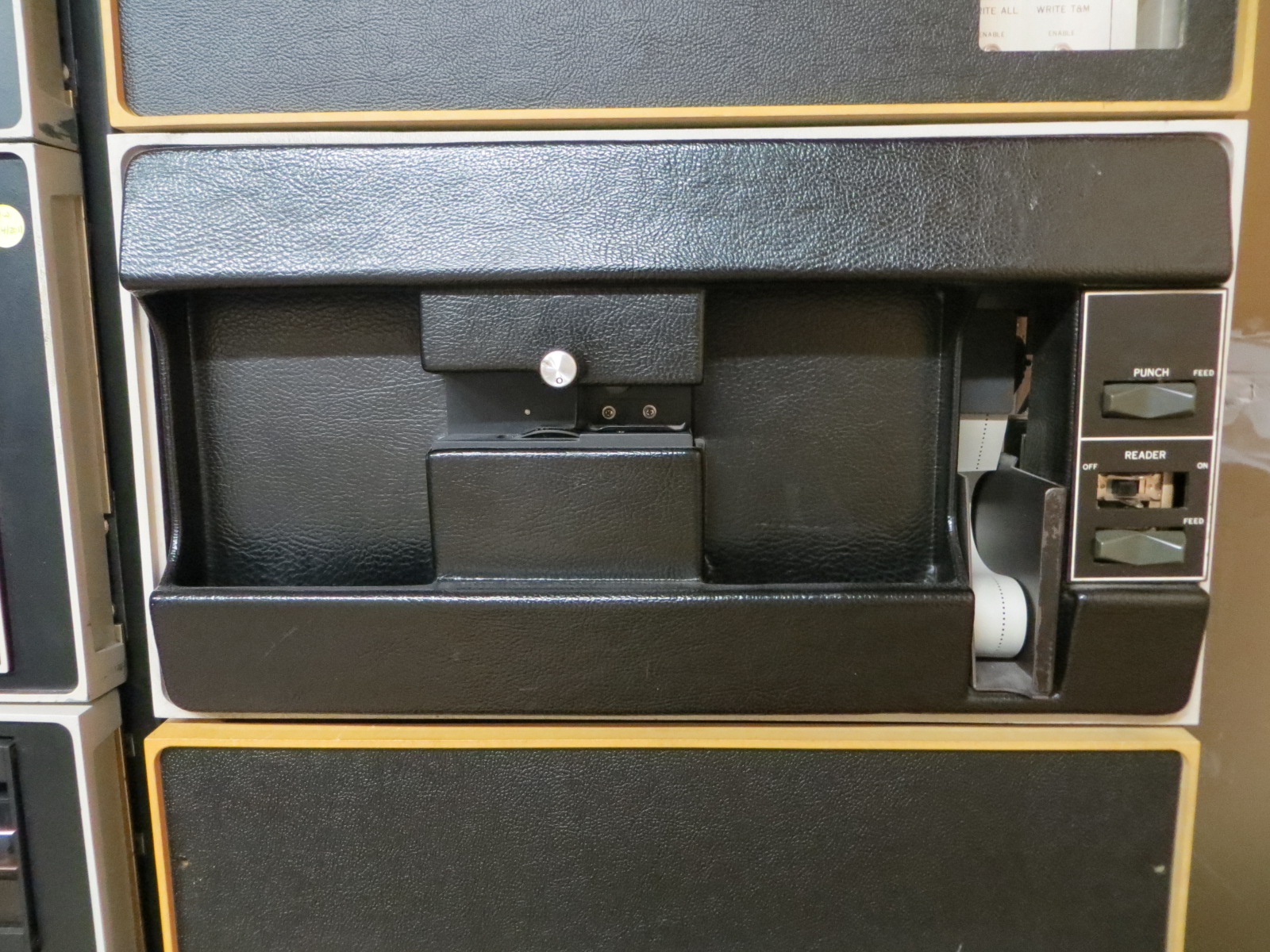

Digital Equipment PC05/PC11 Paper Tape

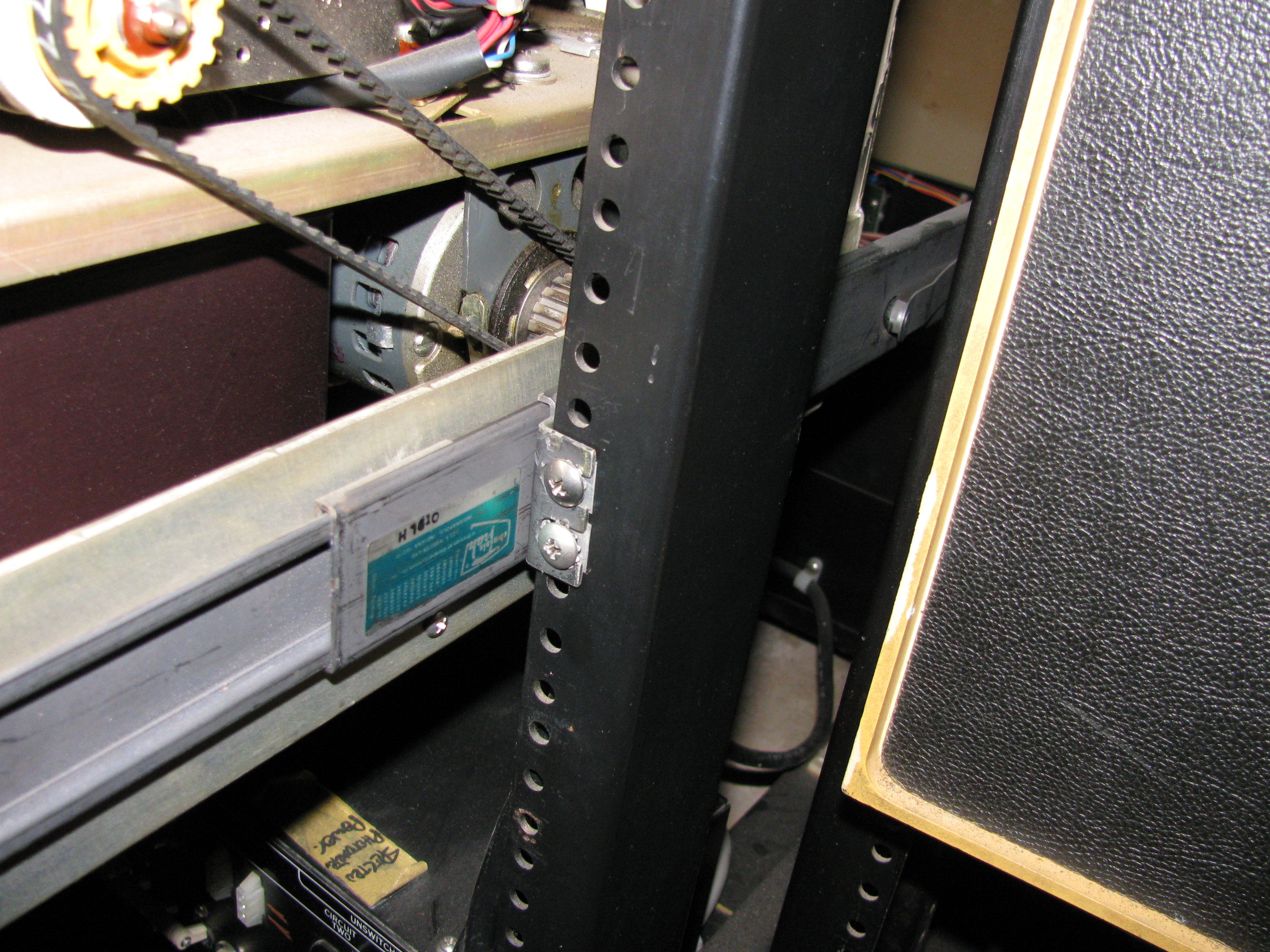

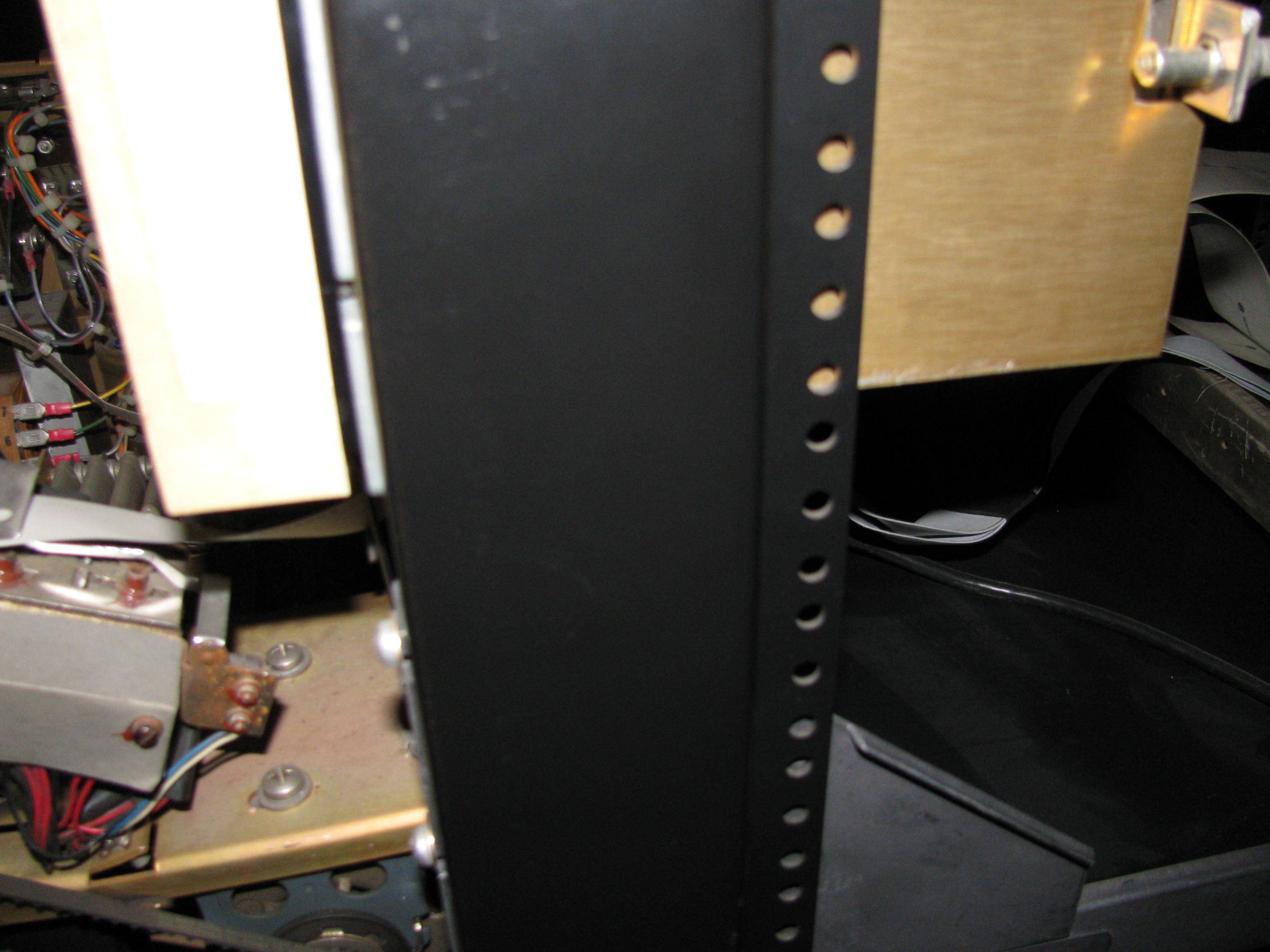

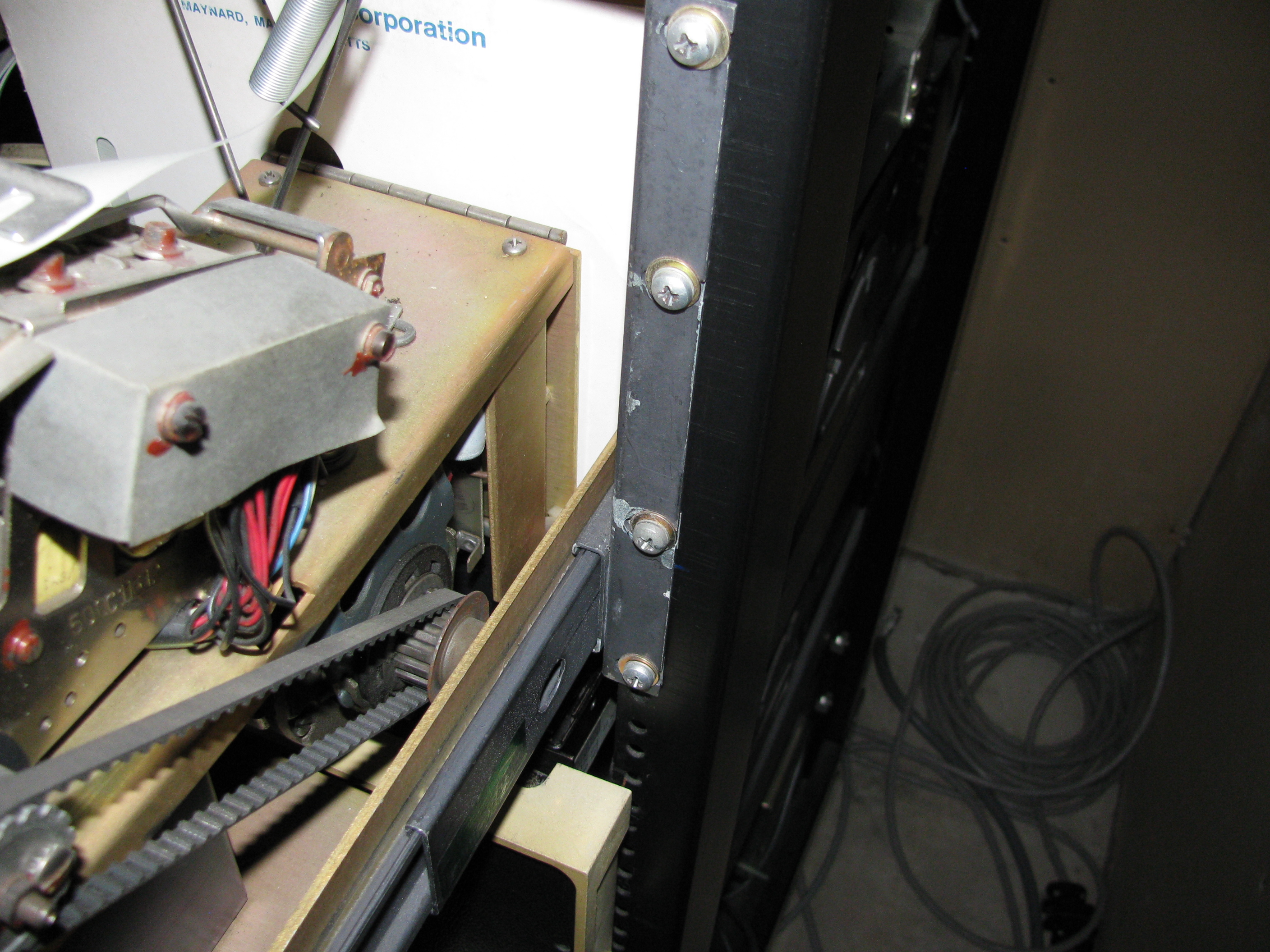

I have four DEC paper tape units in the collection. Three of them are reader/punches, one has just the reader unit, with no punch. Many of the punches need work (perhaps just lubrication) — they have a tendency to punch adjacent bits. One of the readers has a burned out illumination lamp.

I also developed a PC11 reader emulator. Based on an Arduino Uno, which connects to a PDP-11 M7810 paper tape interface, and has an Ethernet interface, allowing easy loading of paper tape images.

In 2023 I discovered that the PC05 doesn’t do all that well reading a larger sized paper tape in rolled up form, which led to be restore my HP 2748B to operation.

HP 2748B and HP 2748A Paper Tape Readers

HP 2748B Front Panel
Front Panel of an HP 2748B Paper Tape Reader

I also have one each of the HP 2748A and HP 2748B paper tape readers. The HP2748B is shown above – the HP 2748A has a dark front panel. These readers use a pinch roller rather than a sprocket feed like the PC05 and work well for rolled up tapes.

You can read about my adventures restoring my HP 2748B in 2023.

IBM 1627 Plotter

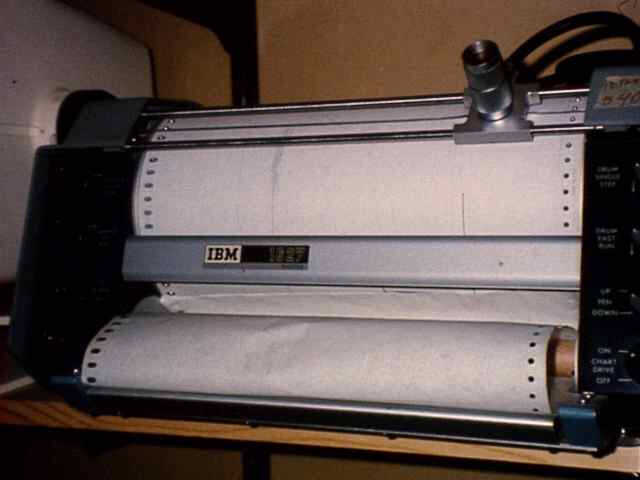

IBM 1627 Plotter

One interesting peripheral I have obtained is an IBM 1627 plotter. Under the covers it is really a CalComp plotter. This same model plotter was also sold by DEC for it’s PDP-12 systems. I did eventually find a plotter interface card for it, and did connect it to my PDP-12 for a test. From its nameplate, I deduce that it originally may have been part of an IBM 1620 system. (The 1620 system did it’s arithmetic using the adders that were part of it’s index registers, using table lookup. For that reason, it was sometimes called the “CADET” computer (for “Can’t Add, Doesn’t Even Try”). The popular ECAP (Electronic Circuit Analysis Program) was originally written for the 1620.

Documation M600L Card Reader

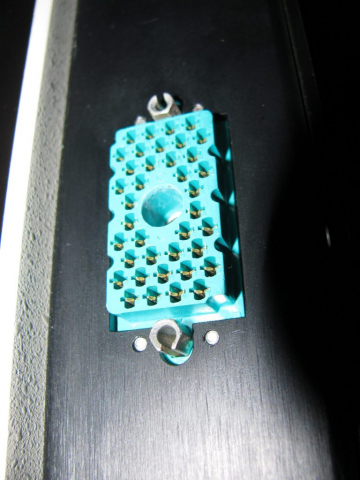

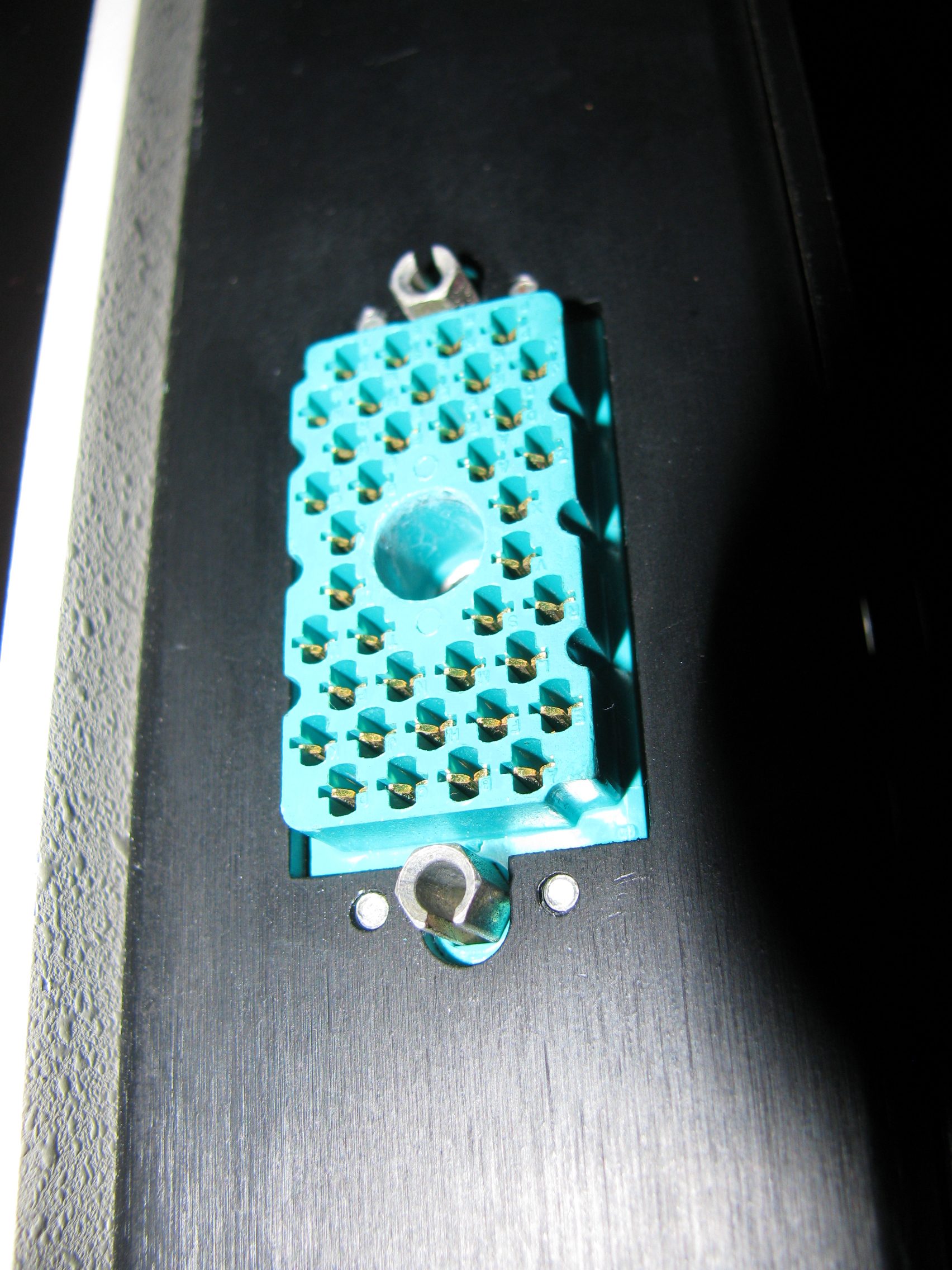

I acquired a card reader that had been used in Texas, and was surplussed after the “hanging chad” debacle. I don’t yet have a photo of the M6oo card reader proper, but I do have photos of the interface connector and the power connector. I developed a Documation card reader interface for this card reader, including my own PCB design, based on a PIC micro-controller.

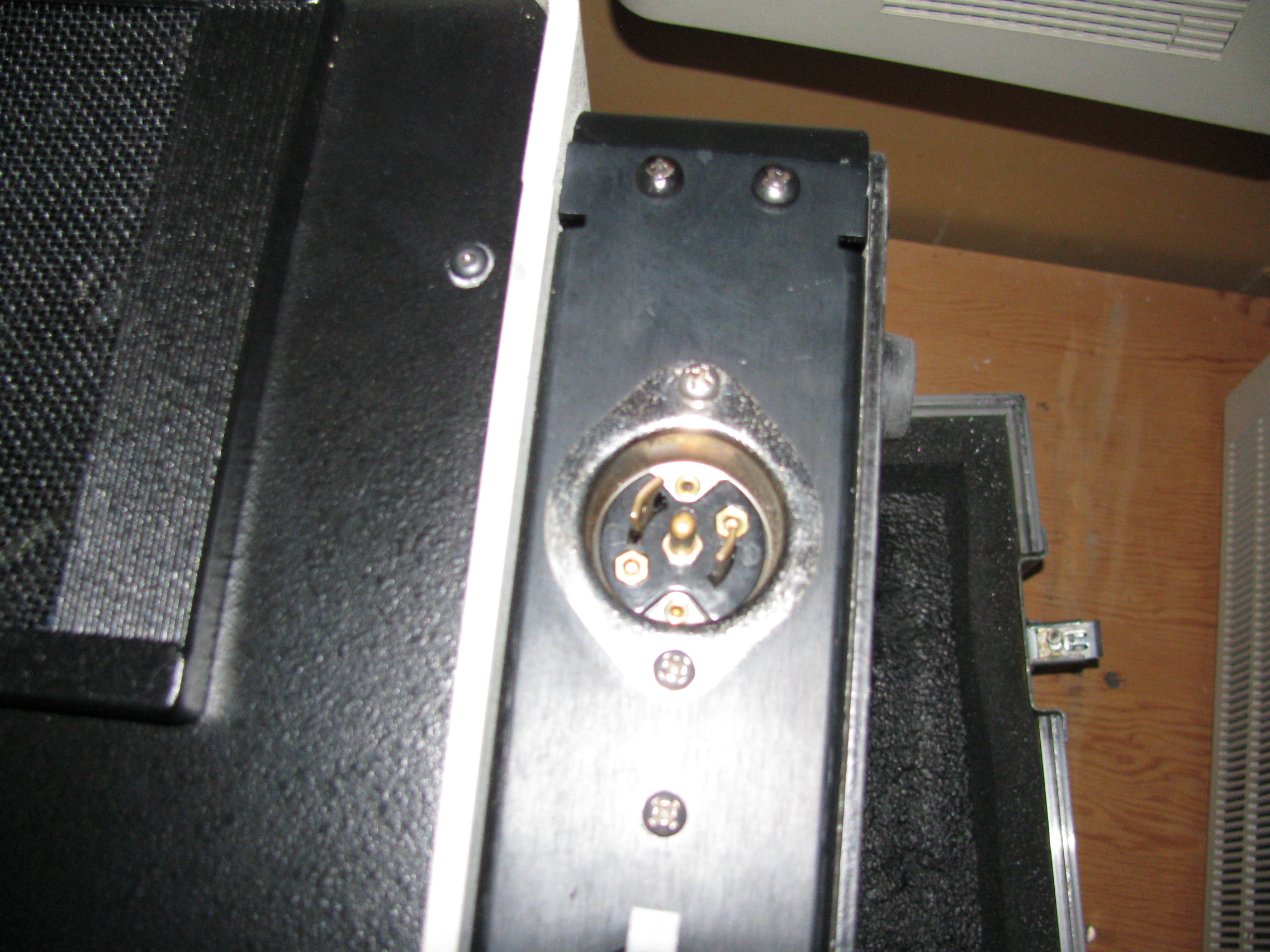

The power cable for this card reader is dangerous. Instead of that center pin being protective ground, as one might expect, it is the HOT connection for AC power.
